Description

The new HD 6/13 CX Plus from Kärcher features a host of benefits to make cleaning jobs that little bit quicker and easier. Typical Kärcher design features add convenience without compromising performance: like the on-board storage for nozzles, power cable, hose and lance; the new carry handle that makes the machines truly portable; and of course the unique lie-flat or stand up operating position. The CX model also features a built-in hose reel to keep the 15m high pressure hose safely and conveniently stored.

Features & Benefits

Mobility – The integrated carrying handle on the front of the machine enableseasy loading and convenient transport. Push handle can be retracted at the push of a button. Compact package.

Flexibility – Vertical and horizontal operation possible. The wheels are not on in horizontal operation. In this way,the machine offers maximum stability. Separate parking and transport position for the spray unit.

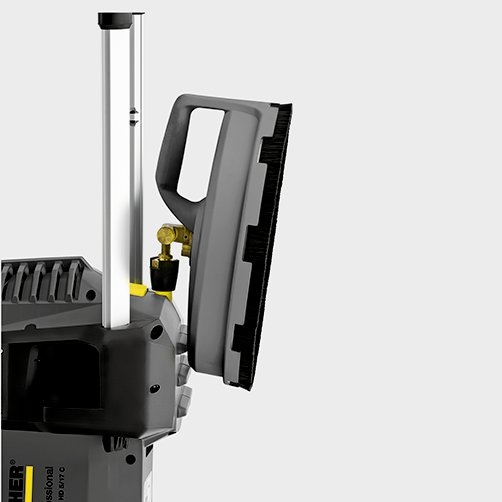

Accessory Storage – Screw connections (M 18 × 1.5) for storing surface cleaner directlyon the machine. Practical nozzle compartments for triple nozzle and rotary nozzle. Integrated hose reel with 15 m high-pressure hose. For a wide action radius and easy storage (CX models).

Quality – The automatic pressure relief protects the components and extends the service life.  Complete with a high-quality brass cylinder head and a large, easily accessible water fine filter for protecting the pump against dirt particles in water.

Specifications

Technical data

• Current type (Ph) – 1 – 230 – 50
• Flow rate (l/h) – 590
• Operating pressure (bar/MPa) – 130/13
• Max. pressure (bar) – 190/19
• Power rating (kW) – 2.9
• Power cable (m) – 5
• Weight (kg) – 27.5
• Dimensions (L x W x H) (mm) – 380 x 370 x 930

Equipment

• Trigger gun, Easy-press trigger gun
• Trigger gun with soft grip
• High-pressure hose, 15 m
• Spray lance, 850 mm
• Triple nozzle (0°/25°/40°), Manual
• Dirt Blaster spray lance
• Hose reel
• Anti-twist system (AVS)
• Pressure switch control
