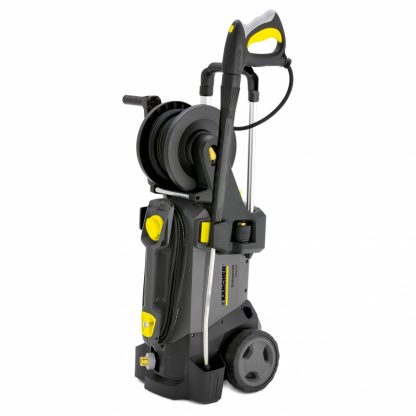

Karcher HD 5/12CX Plus 240v Cold Pressure Washer



Compact, high performance cold water pressure washer with unique stand-up or lay-flat operating positon, large carry handle and built-in hose reel.


The new HD 5/12 CX Plus cold water pressure washer from Kärcher features a host of benefits to make cleaning jobs that little bit quicker and easier. Typical Kärcher design features add convenience without compromising performance: like the on-board storage for nozzles, power cable, hose and lance; the new carry handle that makes the machines truly portable; and of course the unique lie-flat or stand up operating position. The CX model also features a built-in hose reel to keep the 15m high pressure hose safely and conveniently stored.


Mobility –

  • The integrated carrying handle on the front of the machine enableseasy loading and convenient transport.
  • Push handle can be retracted at the push of a button.
  • Compact package.

Flexibility –

  • Vertical and horizontal operation possible.
  • The wheels are not on in horizontal operation. In this way,the machine offers maximum stability.
  • Separate parking and transport position for the spray unit.

Accessory storage –

  • Screw connections (M 18 × 1.5) for storing surface cleaner directlyon the machine.
  • Practical nozzle compartments for triple nozzle and rotary nozzle.
  • Integrated hose reel with 15 m high-pressure hose. For a wide action radius and easy storage (CX models).

Quality –

  • The automatic pressure relief protects the components and extends the service life.
  • High-quality brass cylinder head.
  • Large, easily accessible water fine filter for protecting the pump against dirt particles in water.

Technical data

  • Current type (Ph) – 1 – 230 – 50
  • Flow rate (l/h) – 500
  • Operating pressure (bar/MPa) – 120/12
  • Max. pressure (bar) – 175/ 17.5
  • Power rating (kW) – 2.5
  • Power cable (m) – 5
  • Weight (kg) – 26
  • Dimensions (L x W x H) (mm) – 380 x 370 x 930


  • Trigger gun, Easy-press trigger gun
  • Trigger gun with soft grip
  • High-pressure hose, 15 m
  • Spray lance, 850 mm
  • Triple nozzle (0°/25°/40°), Manual
  • Dirt Blaster spray lance
  • Hose reel
  • Anti-twist system (AVS)
  • Pressure switch control
