karcher-hds7-104m

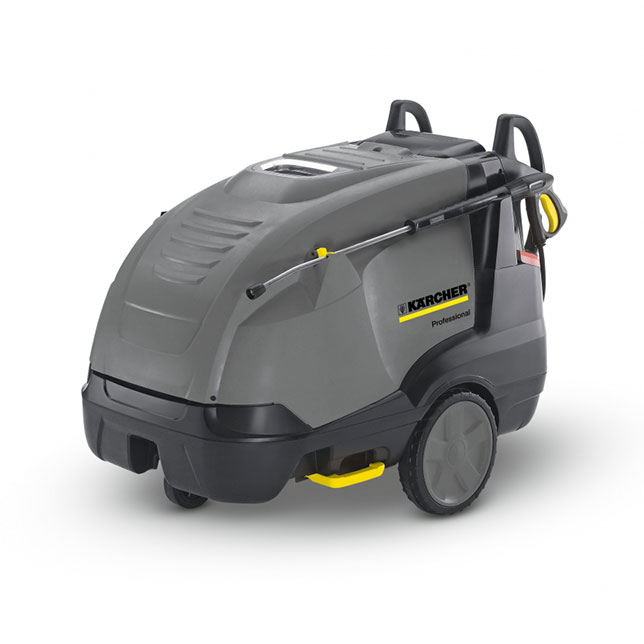

Karcher HDS 7/10-4 M 240v Hot Pressure Washer £3603.00 ex vat

Medium class hot water high-pressure cleaner with a host of user-friendly features.



SKU: 1.077-411.0 Categories: , , , , Tag:

Description

Kärcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.

Features and benefits

Efficiency

  • In the Eco setting the unit operates in the most economical temperature range (60°C) with full water flow.
  • Burner cycles are optimised to reduce fuel consumption by up to 20% compared to full-load operation.

Operational reliability

  • The large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles.
  • An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C.
  • The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.

Mobility concept

  • “Jogger” design with large rubber tyre wheels and swivel castors.
  • Sturdy tie-down points for safe transit
  • Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

Specifications

Technical data

  • Current type (Ph) – 1 – 240 – 50
  • Flow rate (l/h) – 350 – 700
  • Operating pressure (bar/MPa) – 30 – 100 / 3 – 10
  • Max. temperature (°C) – 80-155
  • Power rating (kW) – 3.4
  • Consumption fuel oil (kg/h) – 4.6
  • Power cable (m) – 5
  • Fuel tank (l) – 25
  • Detergent tank (l) – 20/10
  • Weight (kg) – 146
  • Dimensions (L x W x H) (mm) – 1330 x 750 x 1060

Equipment

  • Trigger gun, Easy-press trigger gun
  • Trigger gun with soft grip
  • High-pressure hose, 10 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Steam nozzle
  • Anti-twist system (AVS)
  • Tanks for detergent, scale inhibitor and fuel can be filled from outside
  • Control panel with indicator lamps
  • Three piston axial pump, with ceramic piston
  • Pressure switch control
  • Electronic service control
  • Electronic service control with LED display
  • Two detergent tanks
  • Dry running protection

Application areas

  • Vehicle cleaning
  • Equipment and machinery cleaning
  • Workshop cleaning
  • Service station cleaning
  • Façade cleaning
  • Swimming pool cleaning
  • Cleaning production systems
  • Cleaning in production processes
  • Cleaning of sports facilities
